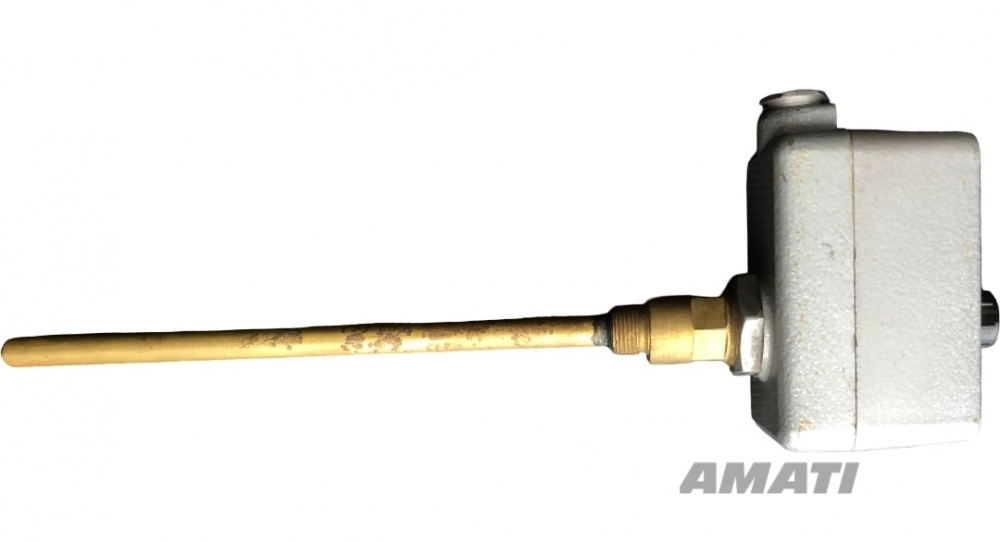

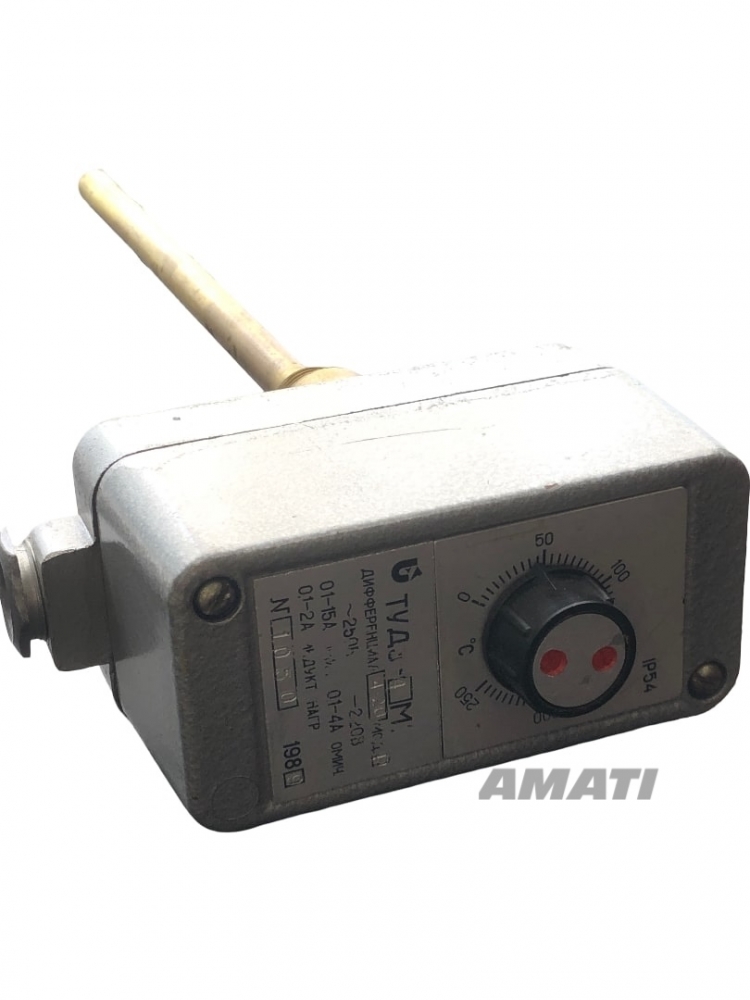

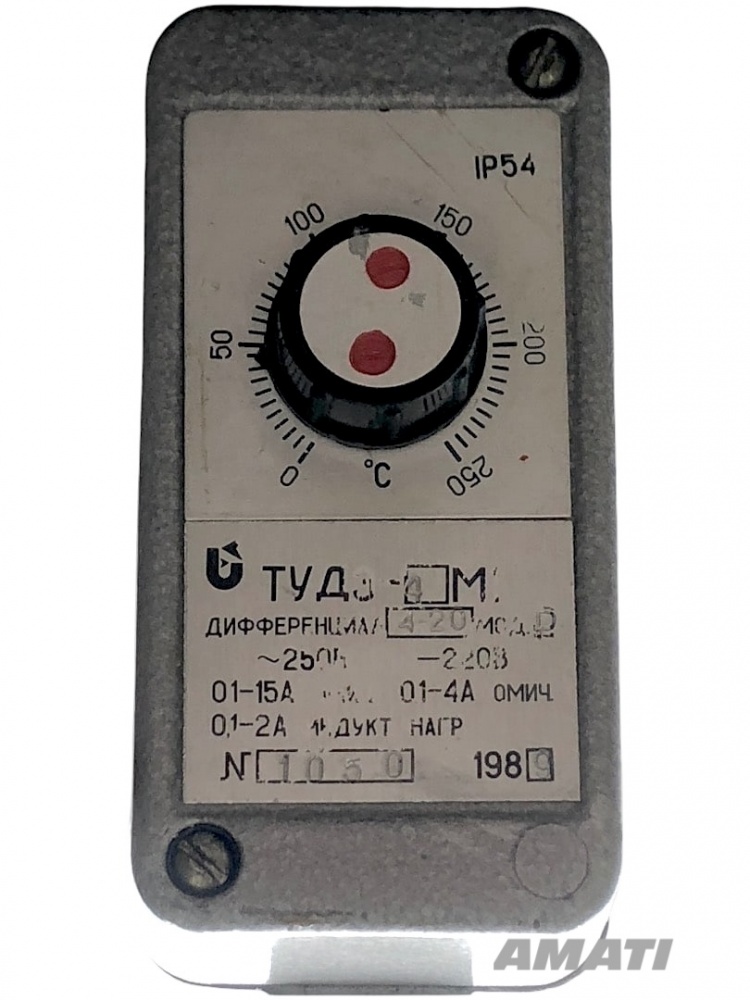

Energy independent temperature controller
3 parts = 32.92 €The indicated price is valid ordering till 31.01.2026.
Please contact us on +371 28339922 to check if the item is in stock before making a purchase. Just because the indication is available does not guarantee that the item is available immediately.
It is used to control the temperature of liquid and gaseous media in automatic control and regulation systems at a static pressure of up to 6.4 MPa (64 kgf / cm2).
Consists of the following main nodes:
- dilatometric element
- contact device
- job setup node.
Technical details
Adjustable temperature range: 0 ... 250°С
Permissible basic response error on the scale of tasks: 2.5%
Differential range: 4-20°С
Sensing element length: 251mm
Allowable insulation thickness: 50mm
Degree of protection: IP54
Controlled environment liquid and environment gaseous Ru 6,4MPa
Switching parameters:
current 0.1 ... 15A, voltage 250V, 50 / 60Hz;
current 0.1 ... 4A, voltage 220V DC;
Resistant to ambient temperature from minus 50 to plus 1200°C and relative humidity up to 98% at a temperature of 250°C and lower temperatures, without moisture condensation for operation in areas with a temperate climate and relative humidity up to 98% at a temperature of 350°C and more low temperatures.
Overall dimensions, mm 608 (max) x59x135 (IP54);
Weight, kg 1.5 (IP54)
