REVENTON

Heating and ventilation Reventon units are used to heat large-size spaces.

Air water heaters have to be connected to central heating system. Application of new technologies in Reventon Group devices guarantees high effectiveness and comfort of the consumption. Original colors of the devices match to every interior. The device is made very precisely and will work smoothly for many years.

- Casing: made of expanded polypropylene EPP, resistant, light and reliable. The material is capable of carrying considerable loads without deforming. It does not degrade under the influence of a lubricant, oil, crude oil and the majority of chemicals. It has an excellent sound insulation properties, that is why it is used as casings, material is environmentally friendly and “green”, i.e. 100% recyclable. Aesthetic design gives new nature to the device.
- Energy saving 3-stage fans with the protection degree of IP 54 fully comply with European standards of ErP 2015.
- Efficient copper and aluminium coil is a guarantee of warm and comfort. We offer 1,2 and 3 row coils with the power range 8-70kW.

ADVANTAGES
- EPP casing
- 3-stage fans with the protection degree IP 54
- Modern design
- Endurance
- High peroformance
- Wide range of power
- Energy saving fan
- Fast attainment of thermal control
- Quiet and reliable work
- Additional equipment
- Easy assembly

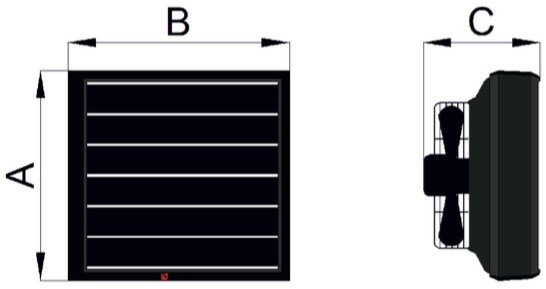

DIMENSIONS
- HC 20-3S, HC 30-3S, HC 35-3S and HC 45-3S:
height (A): 598 mm
width (B): 636 mm
depth (C): 340mm
- HC 50-3S and HC 70-3S:
height (A): 698 mm
width (B): 739 mm
depth(C): 360mm
